Derale Electra-Cool 16 Pass Remote Transmission Cooler Kit 8AN inlets - 15900

Derale Electra-Cool 16 Pass Remote Transmission Cooler Kit 8AN inlets

Description

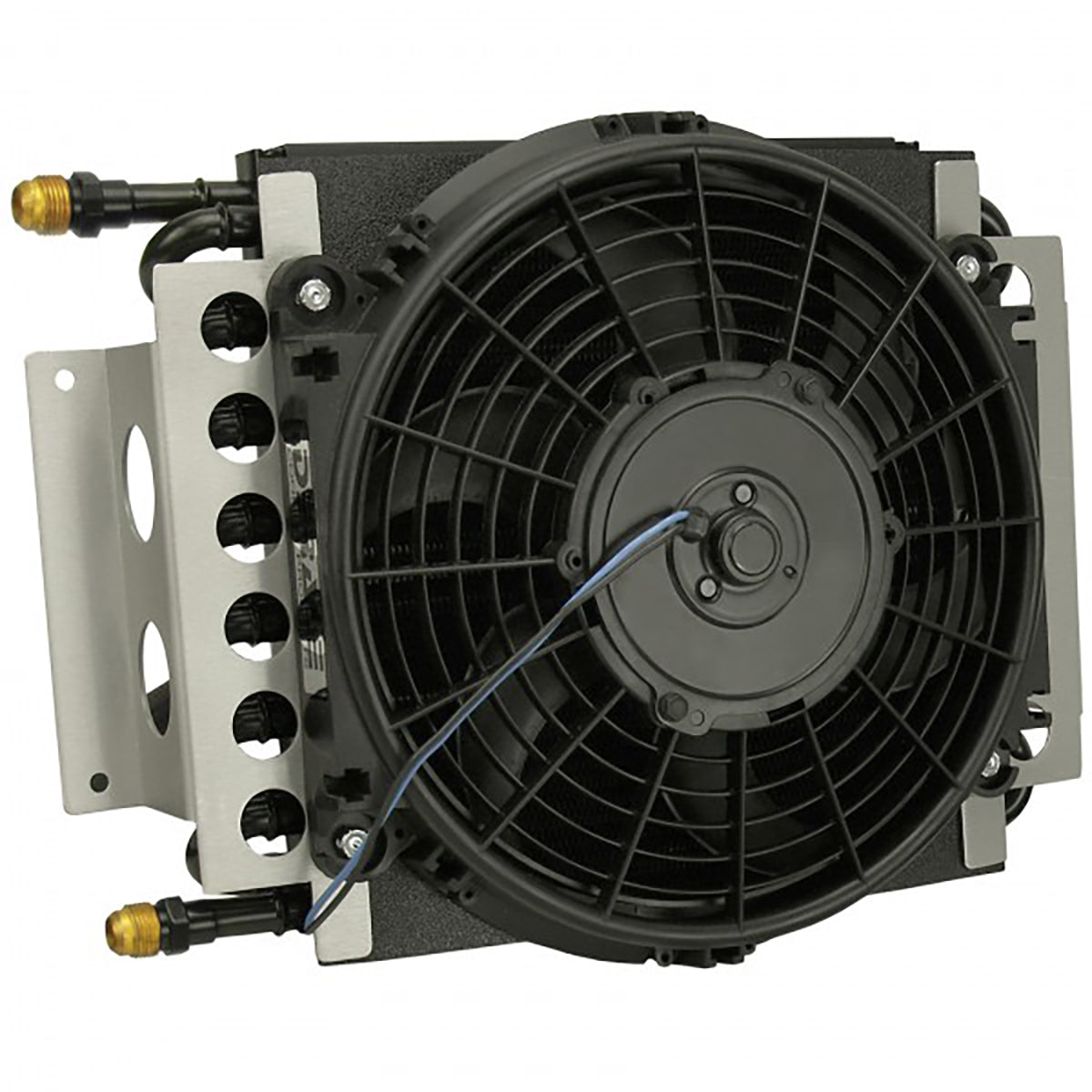

With its’ own air supply, the popular Electra-Cool remote transmission cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 1/2"" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. This is a durable, trouble-free way to add years to the life of your transmission, and perfect for heavy duty towing and hauling.

Specifications

Cooler style: 16 pass Tube & Fin

Inlet size: -8AN

Fan size: 10""

CFM: 650

Amp draw: 5.3

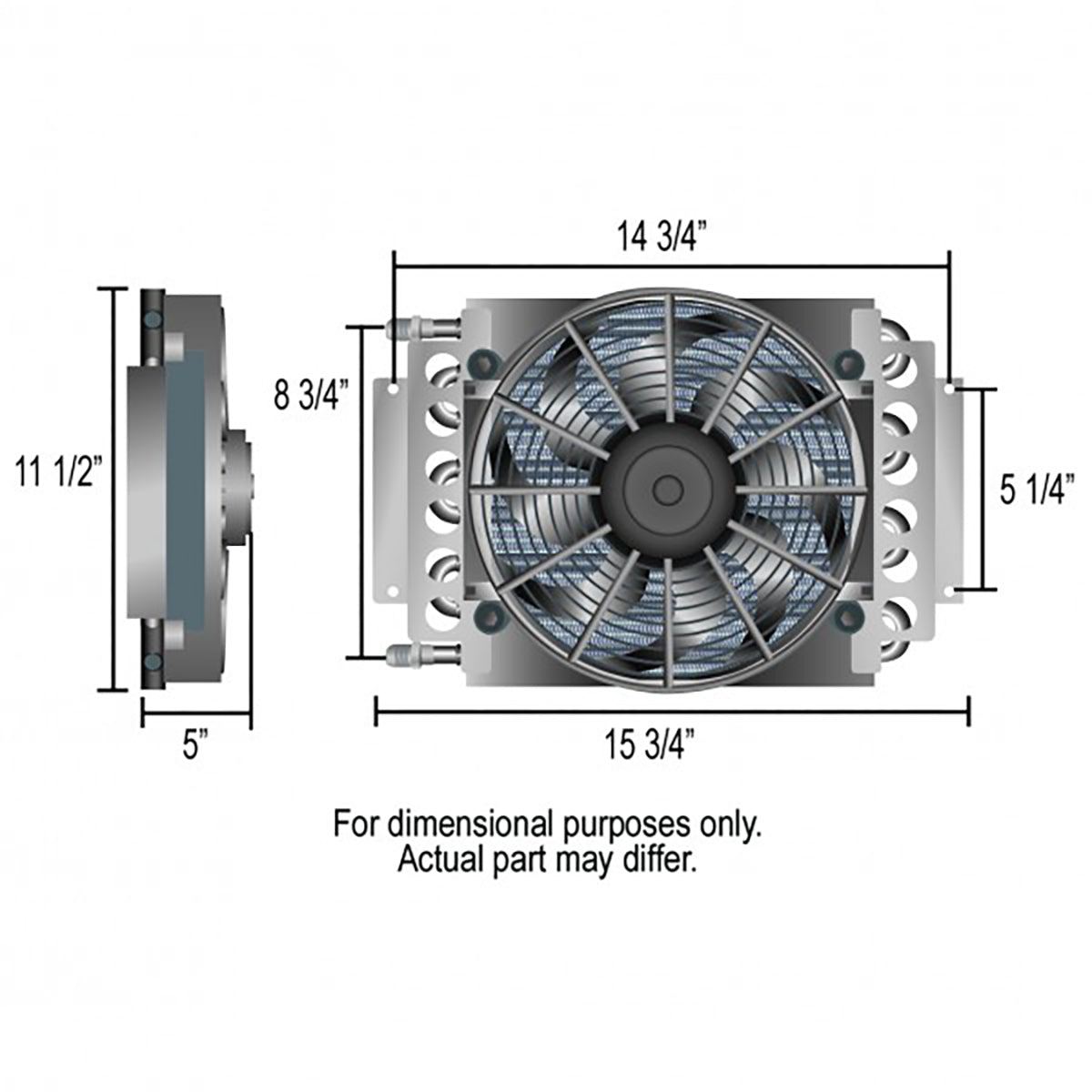

Width: 15-3/4""

Height: 11-1/2""

Depth: 5""

Inlet dim: 8-3/4""

Mounting: 14-3/4"" x 5-1/4""

Cooler fluid capacity: 19.6 oz

14,000 BTU/ Hr

Hose size: 1/2""

Hose length: 10'

Airflow: Puller (reversible)

Features

Mounts anywhere space permits

Electric fan supplies optimum airflow

Dramatically extends engine and transmission life

16 pass Tube & Fin cooler

Clear anodized aluminum shroud

650 CFM reversible Tornado electric fan

-8AN inlet size

Derale coolers are rated at 250psi working pressure and 300psi burst strength

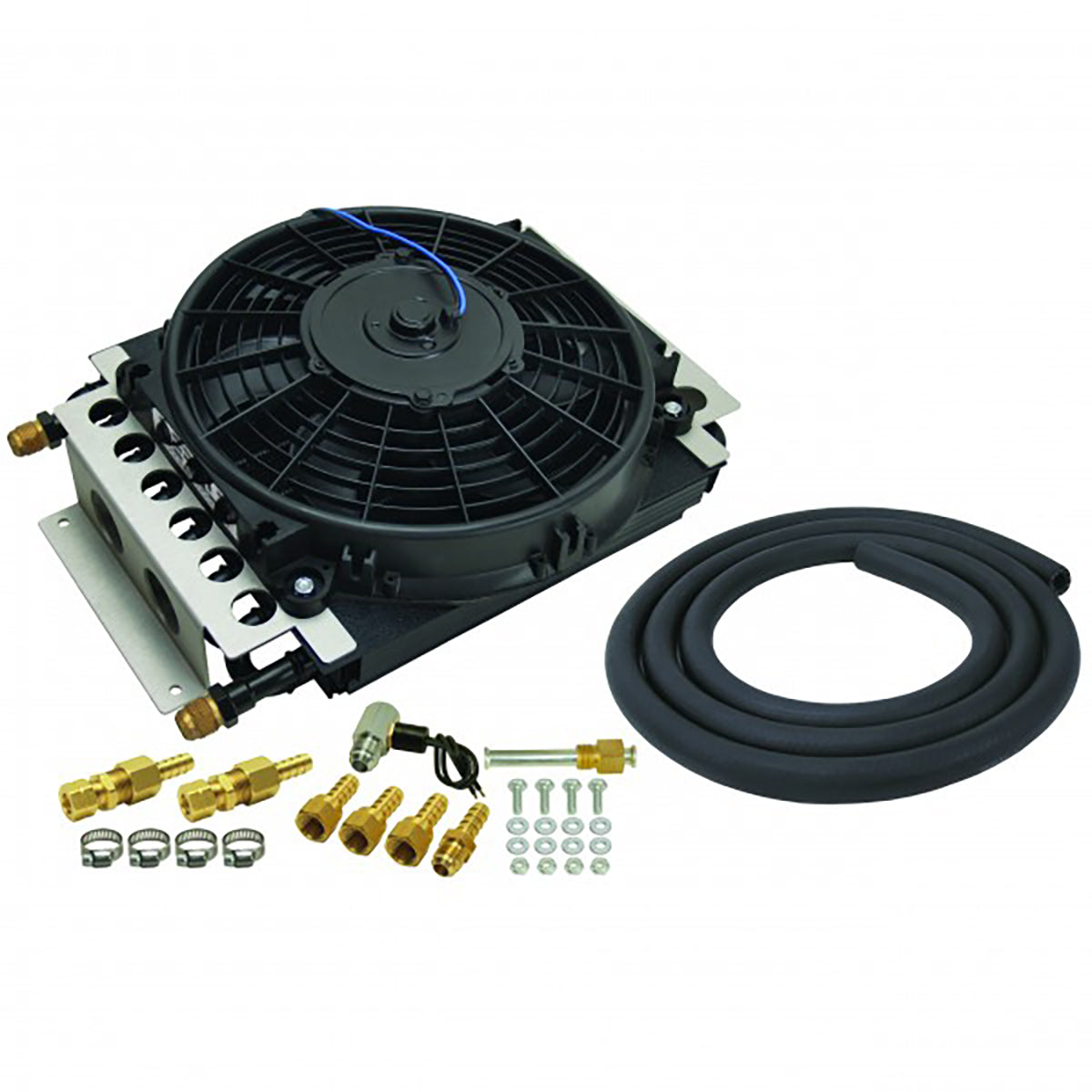

Transmission cooler kit includes fan mounted cooler, two -8AN to 1/2"" barbed hose fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 1/2"" compression fittings, and hardware
