Derale Transmission Cooling Pan Suits GM TH350 Turbo350 Auto - 14200

Derale Transmission Cooling Pan Suits GM TH350 Turbo350 Auto

Description

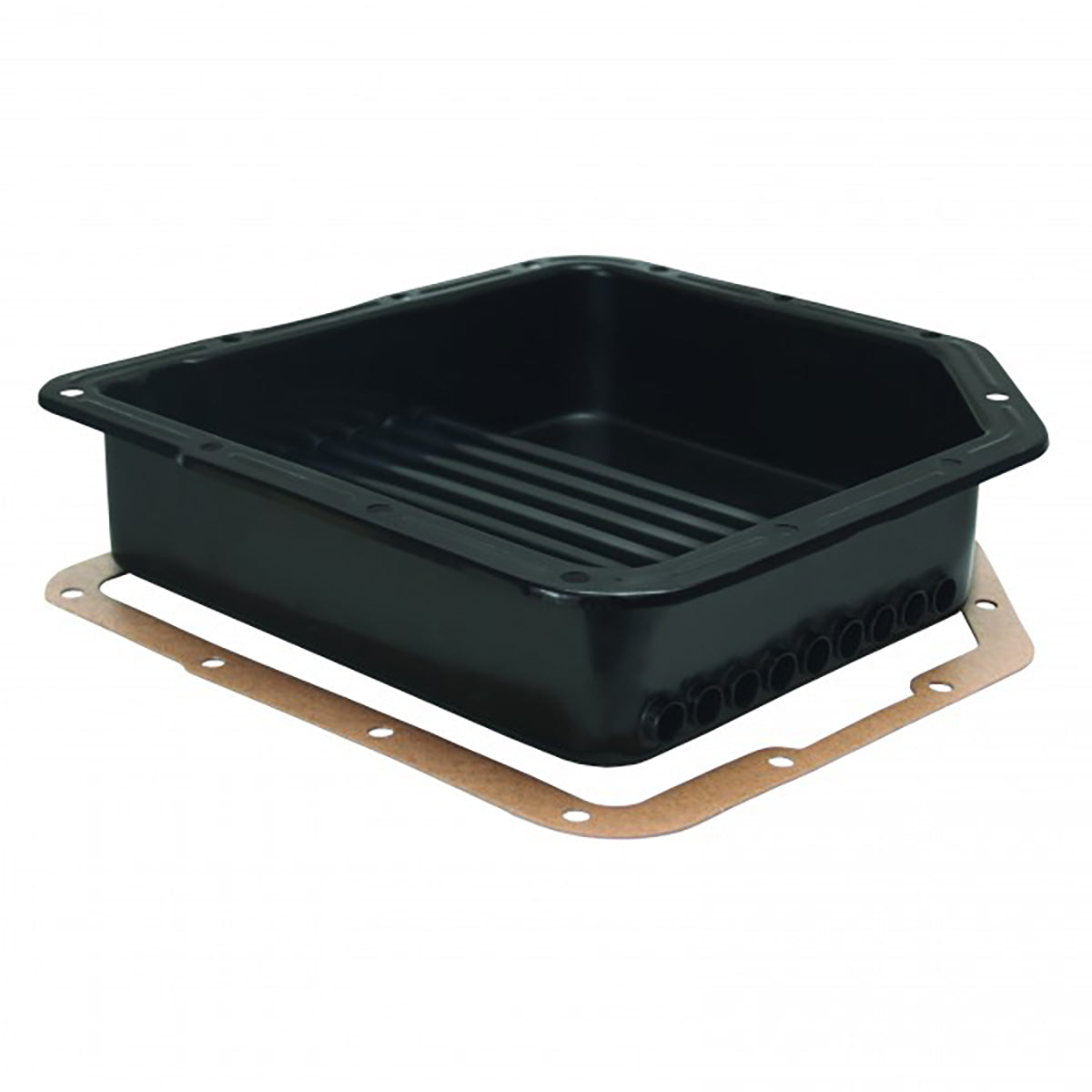

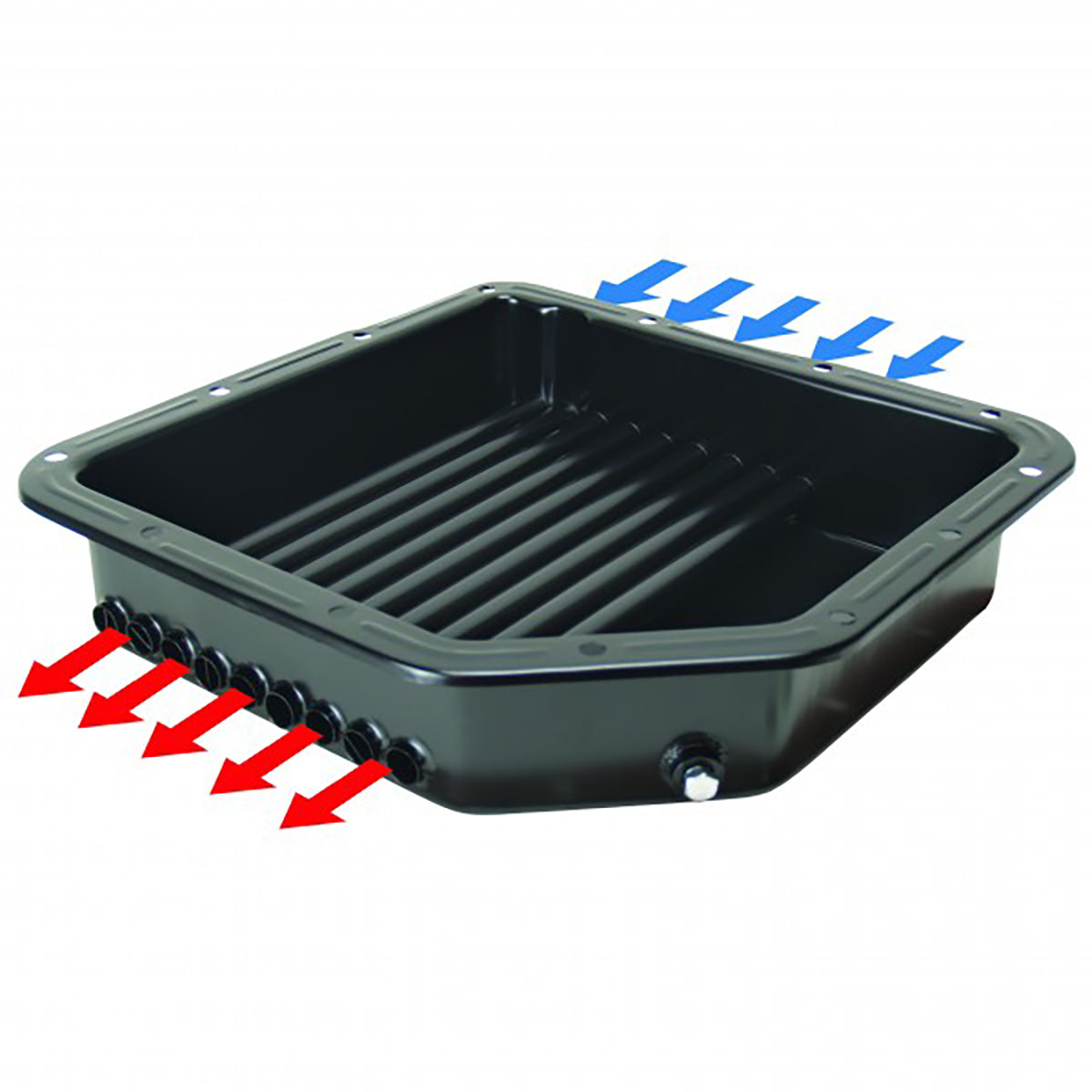

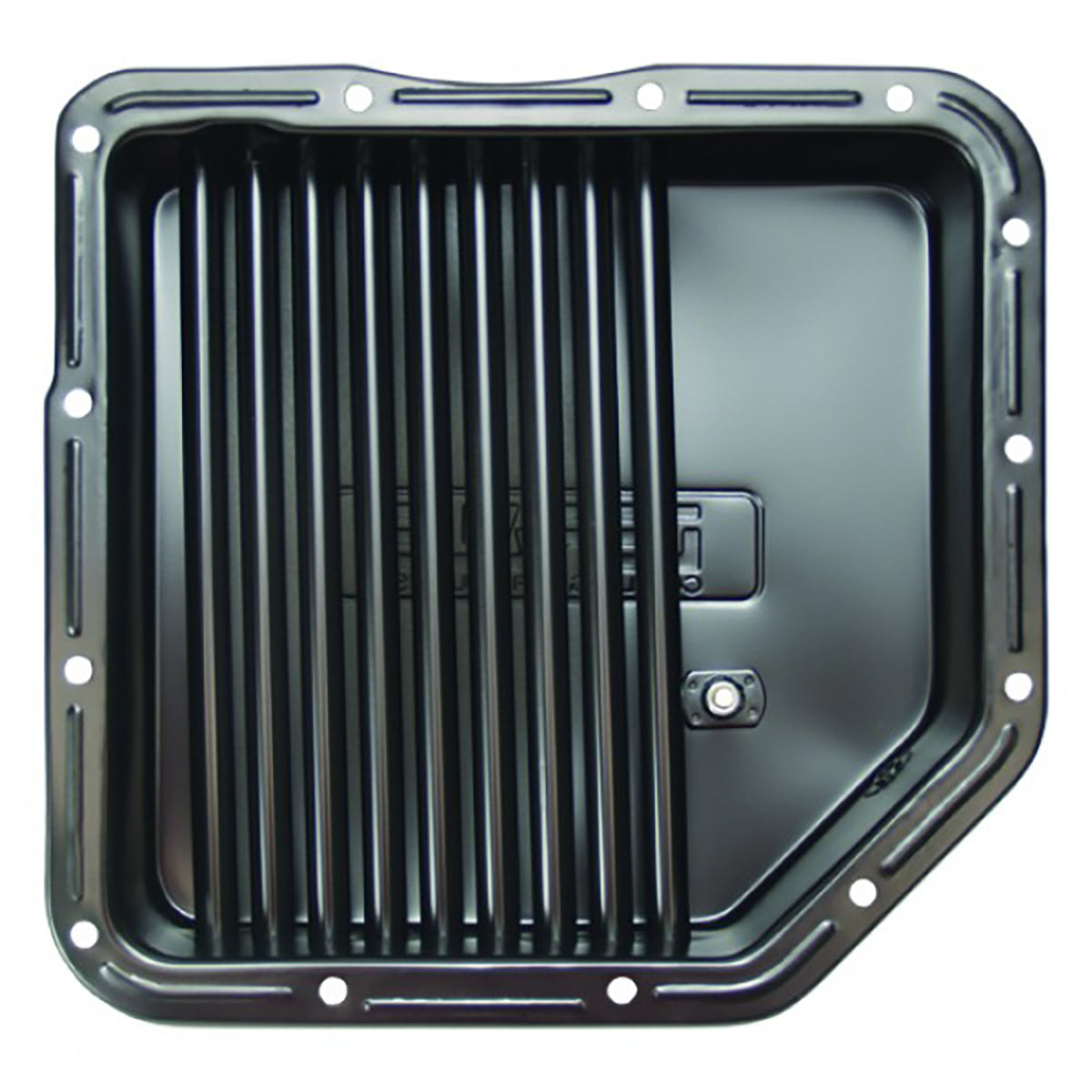

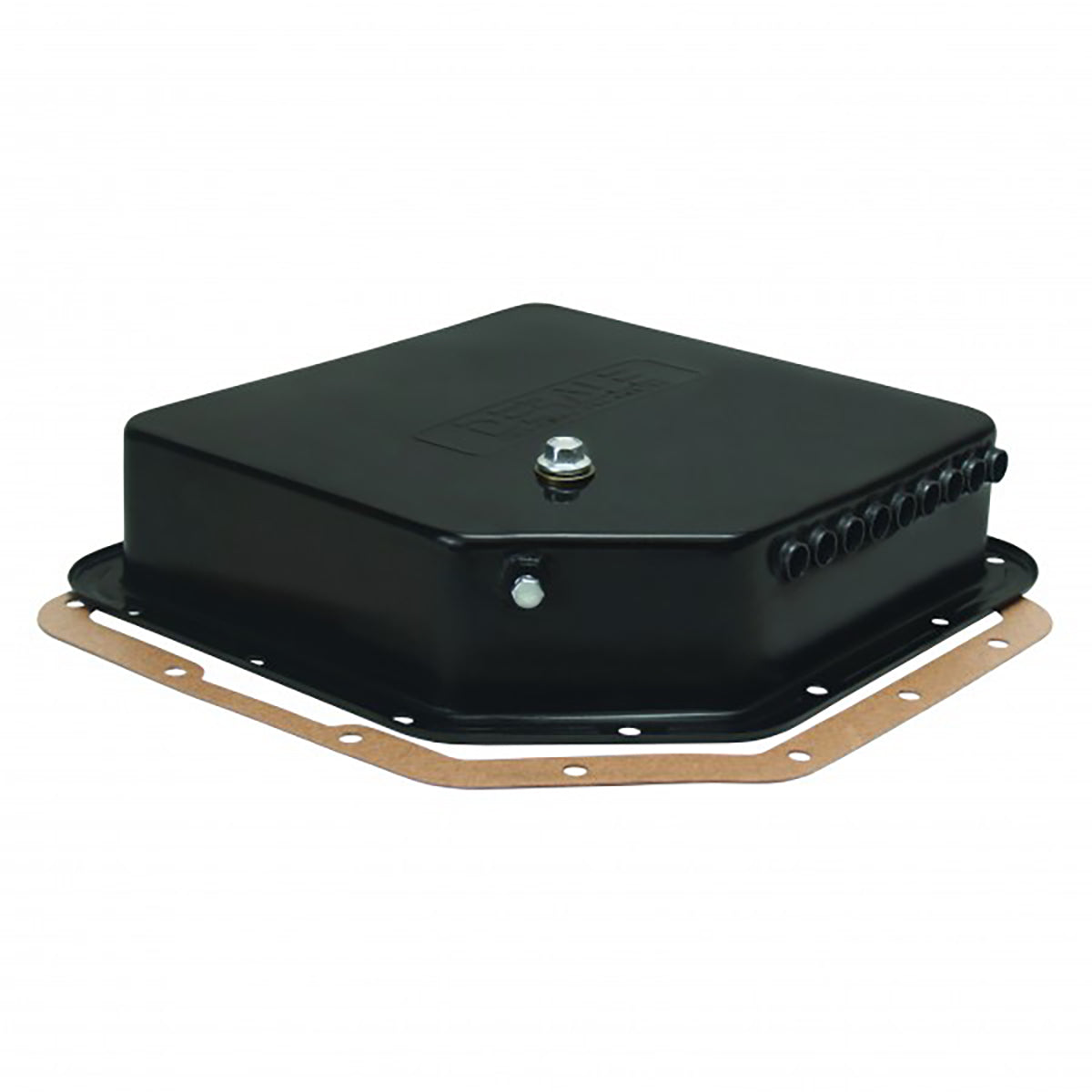

Derale's TH350 Transmission Cooling Pan #14200 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8"" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8"" NPT temperature sender plug.

Specifications

Pan Dimensions: 13 1/2"" Length x 13"" Width x 3-3/8"" Height

Drain plug adds 1/4"" to height

Tube depth: 2-3/8""

Temp bung size: 1/8"" NPT

Drain plug size 1/2""-20

Replacement drain plug Derale 14000

Features

Heavy gauge stamped steel construction

Two stage heat dissipating black finish

1/8"" NPT temperature sender port

Reduces fluid temperatures up to 50°F

Increases fluid capacity by 2 qts.

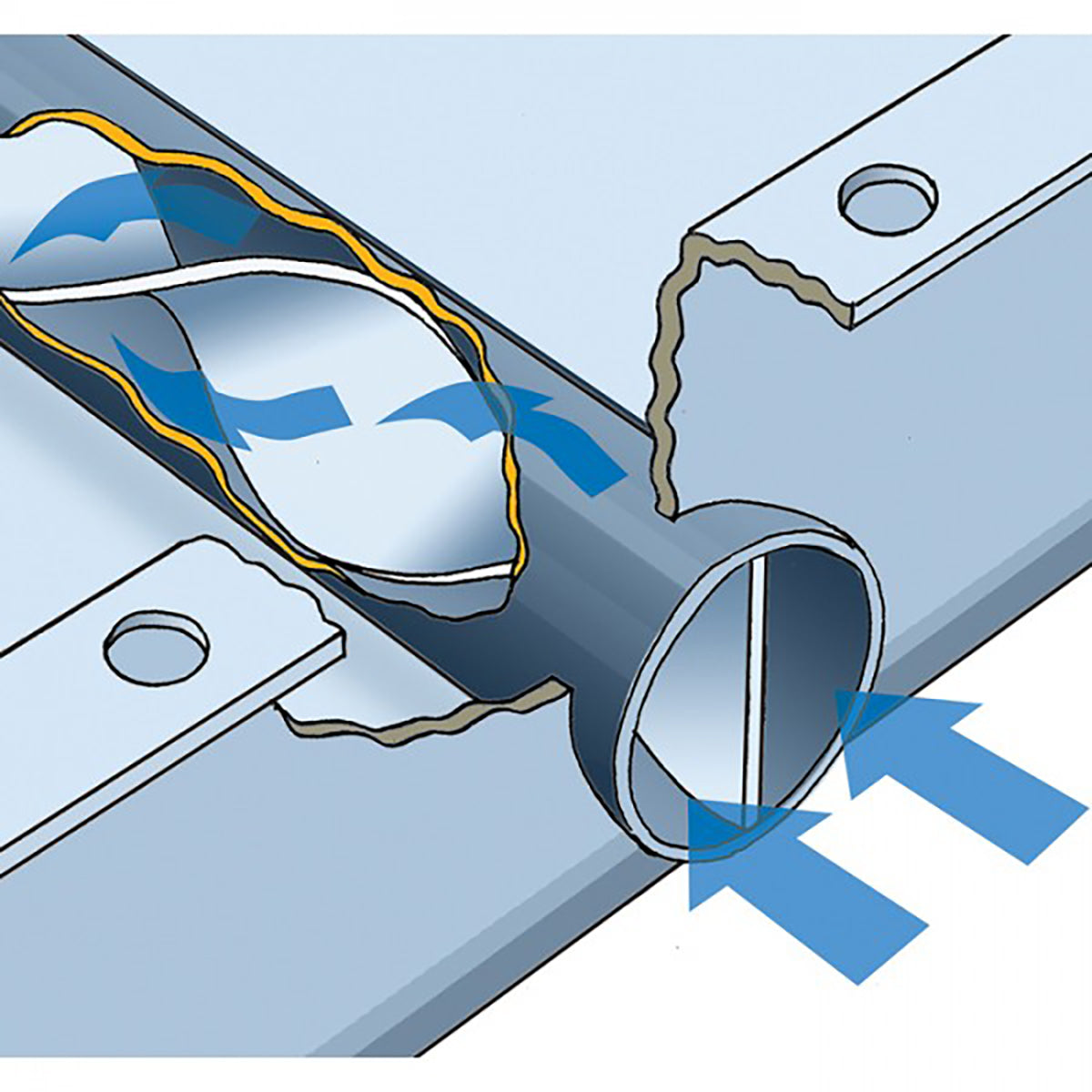

Patented turbulator cooling tubes add heat transfer capability

Magnetic drain plug with increased magnetic strength and rubber/steel washer

Uses OEM filter with no filter extension required
