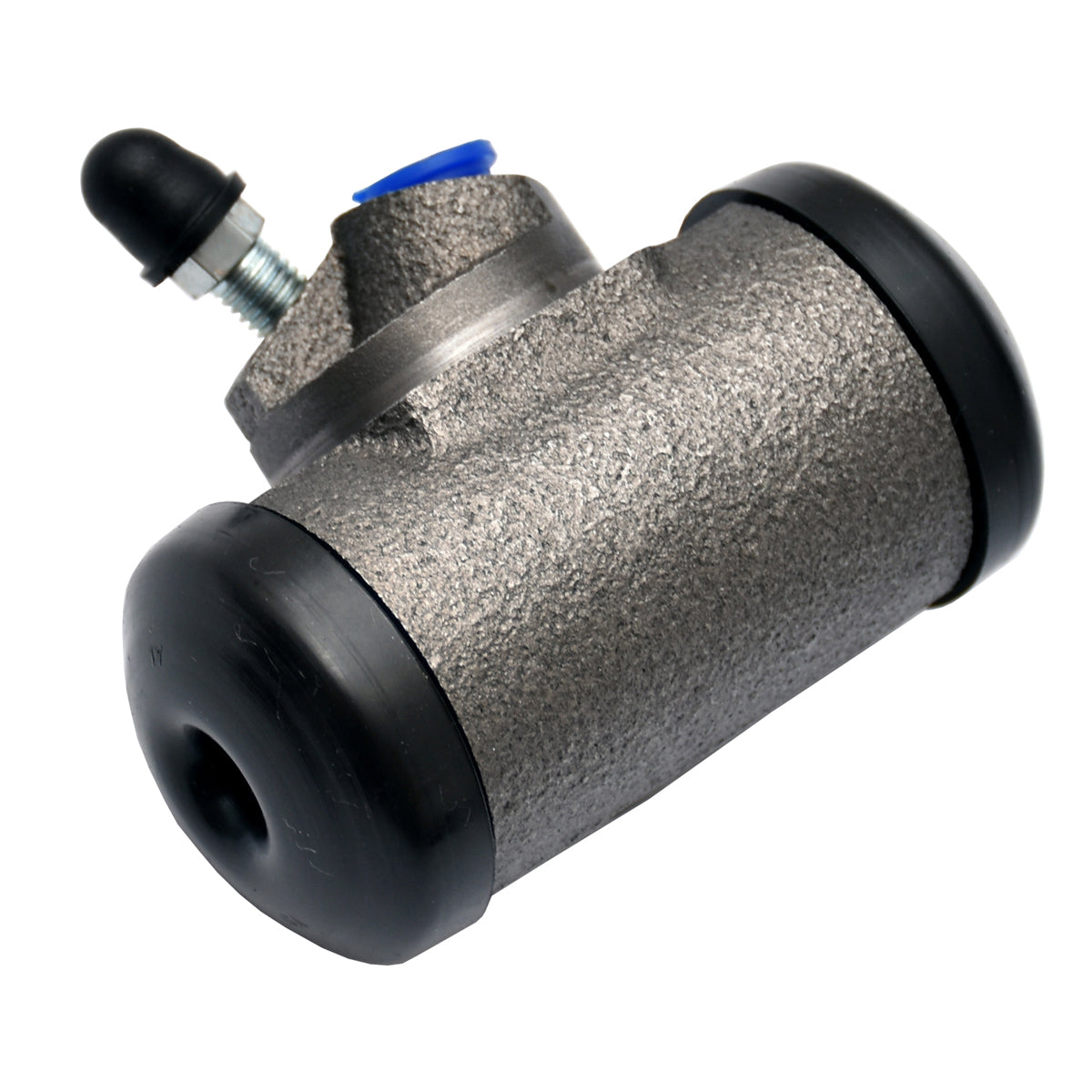

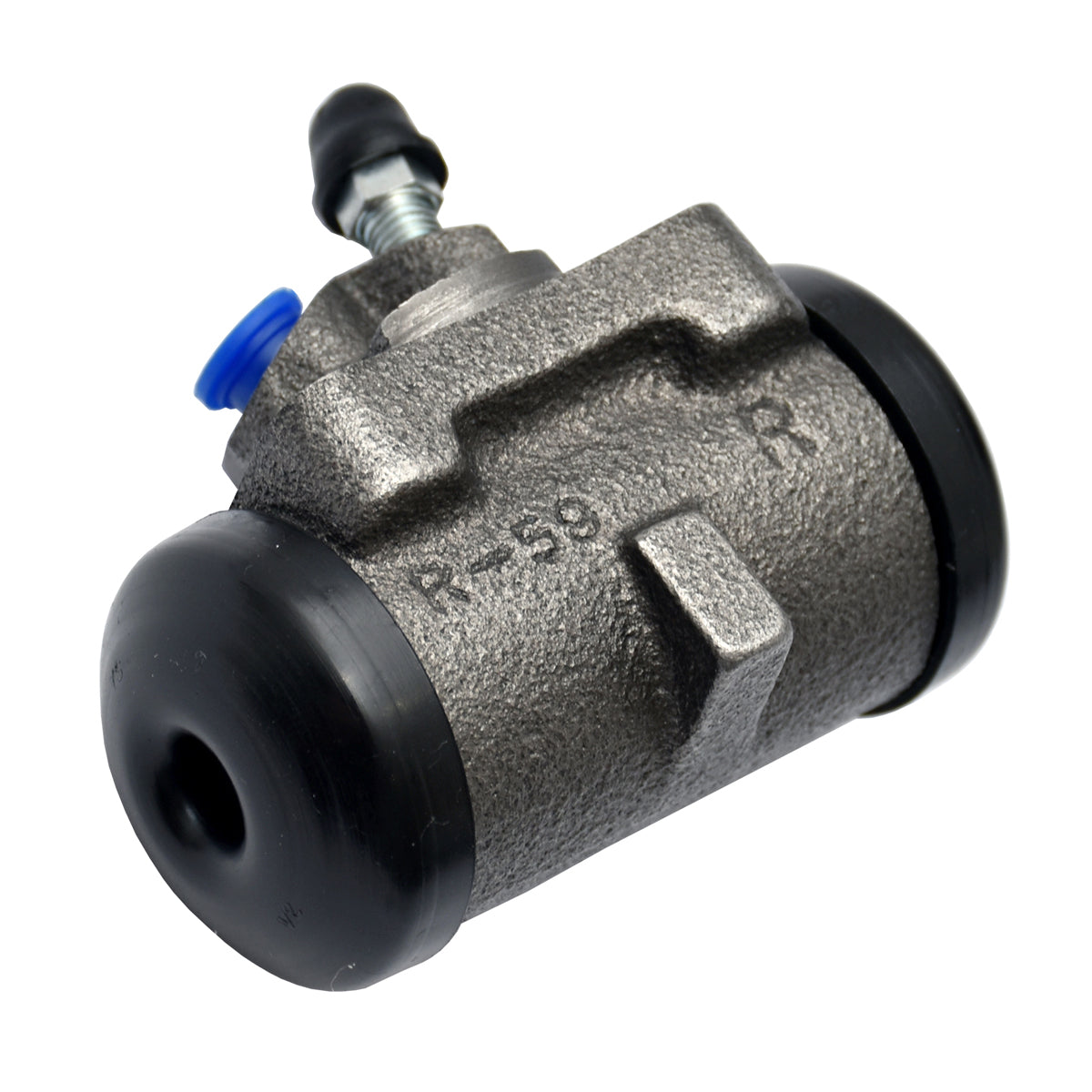

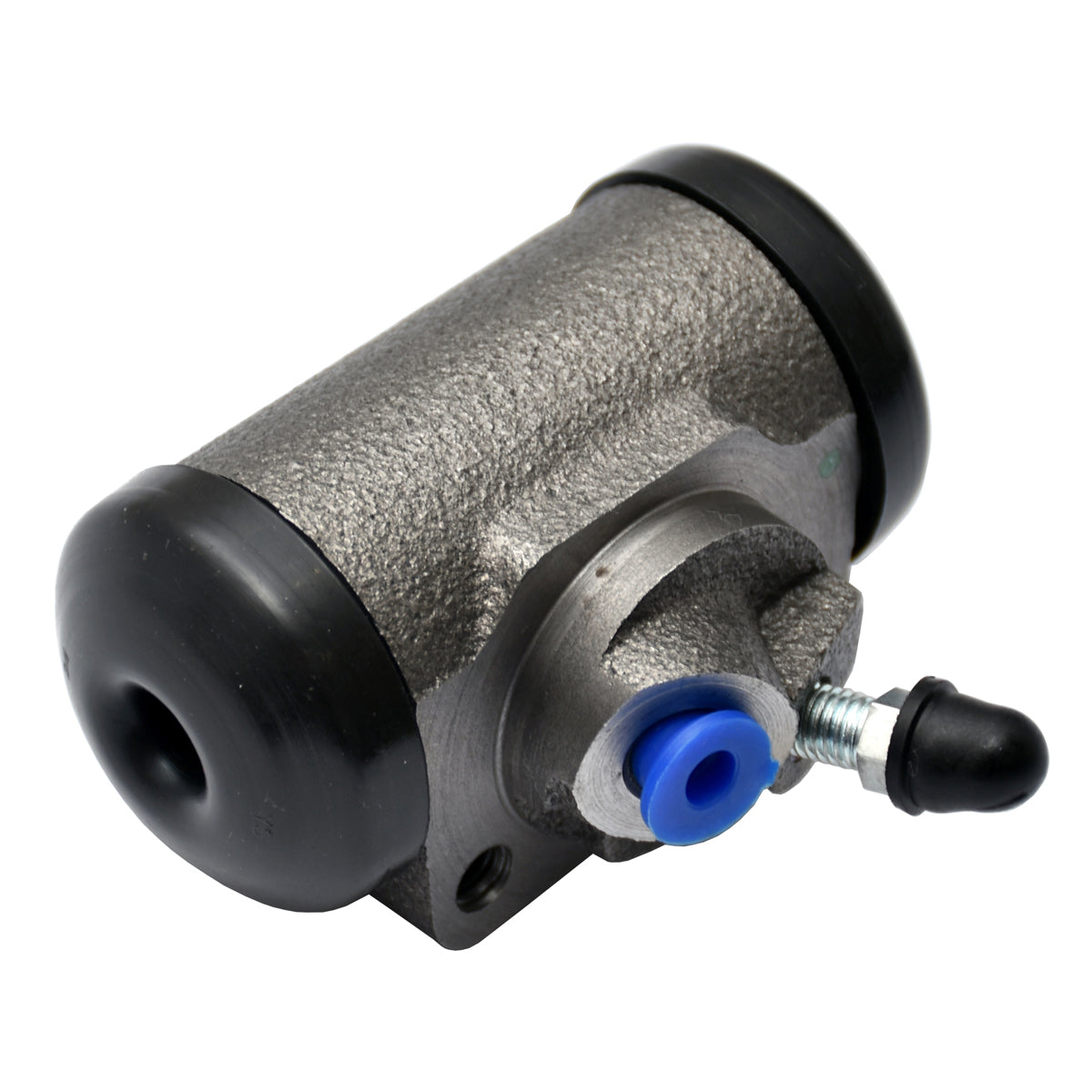

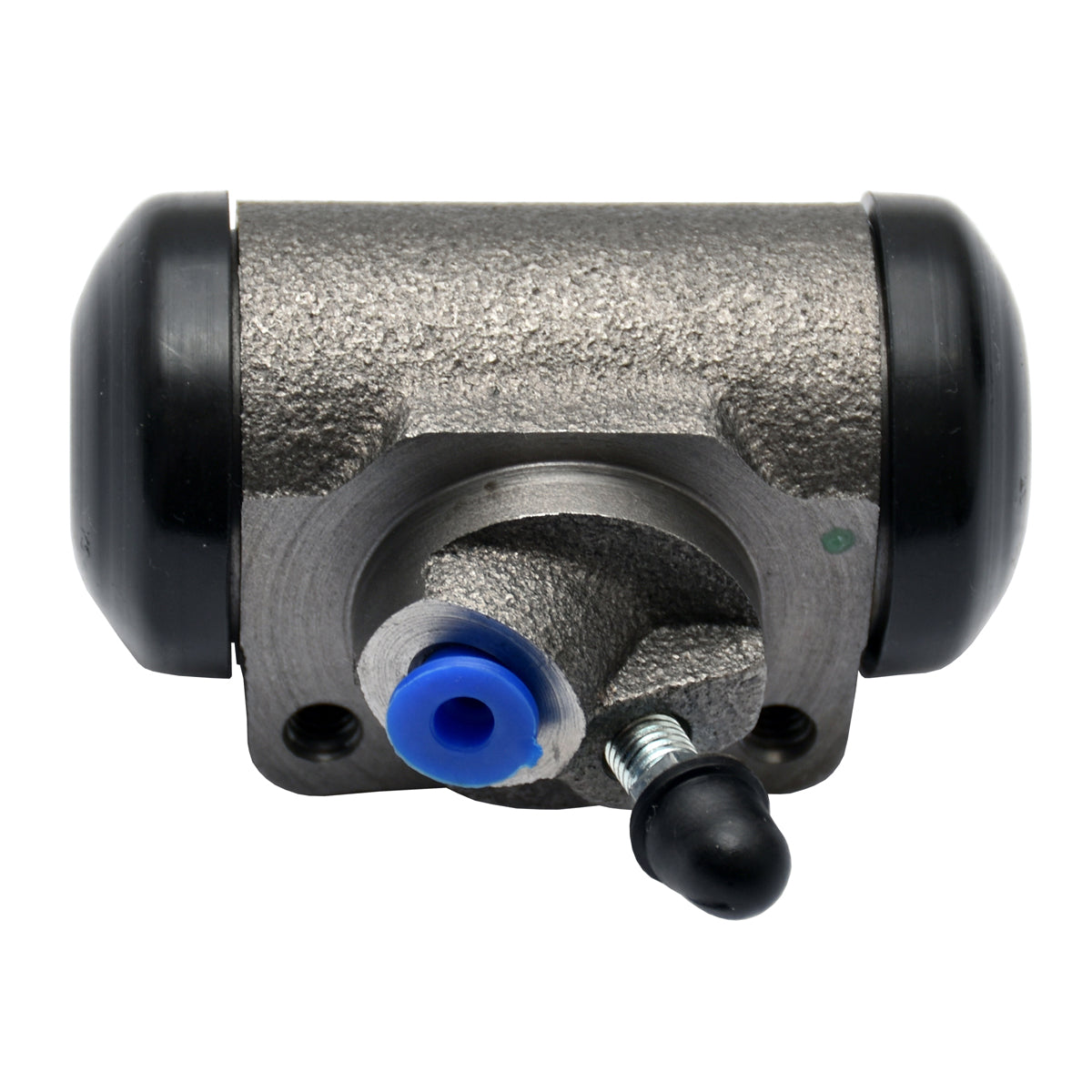

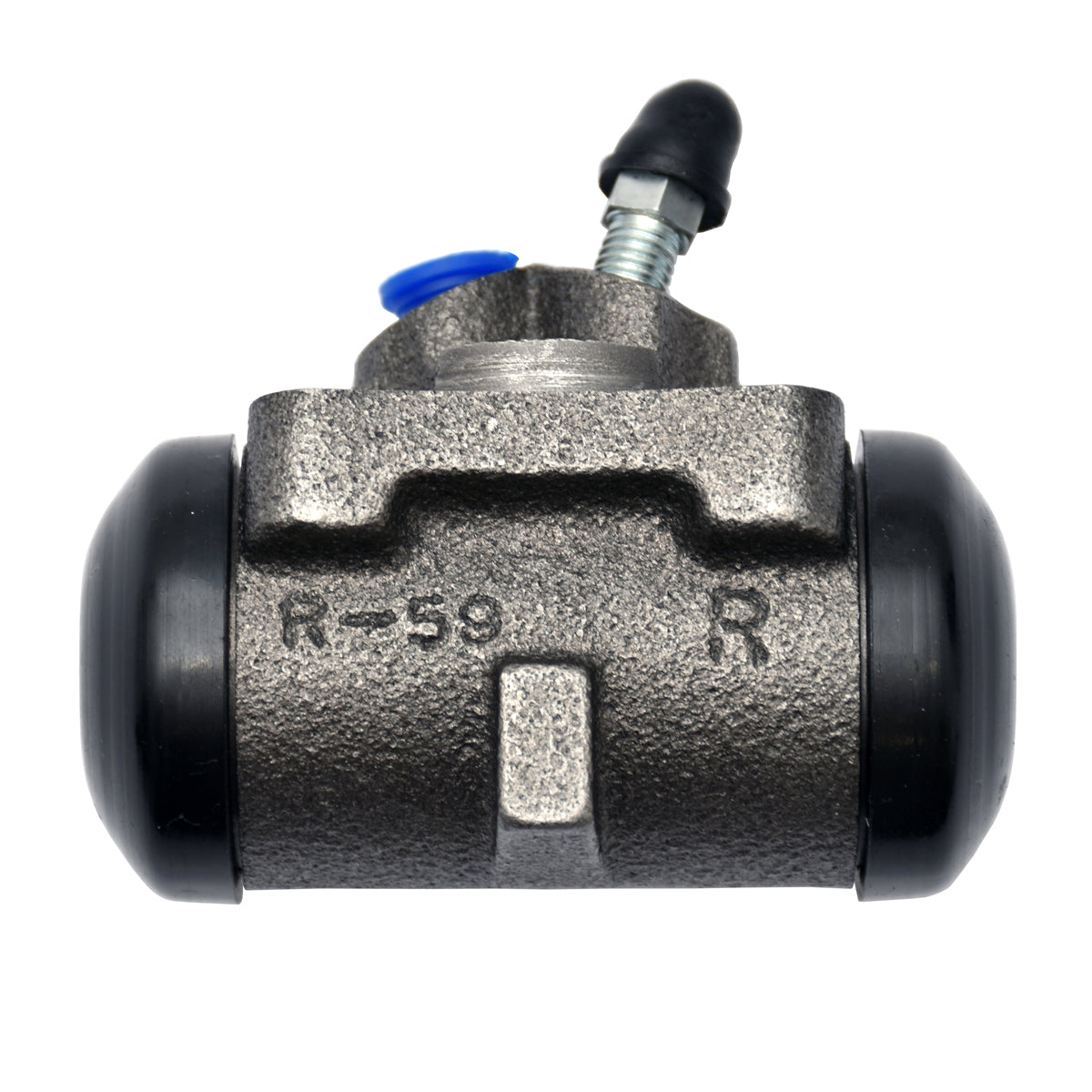

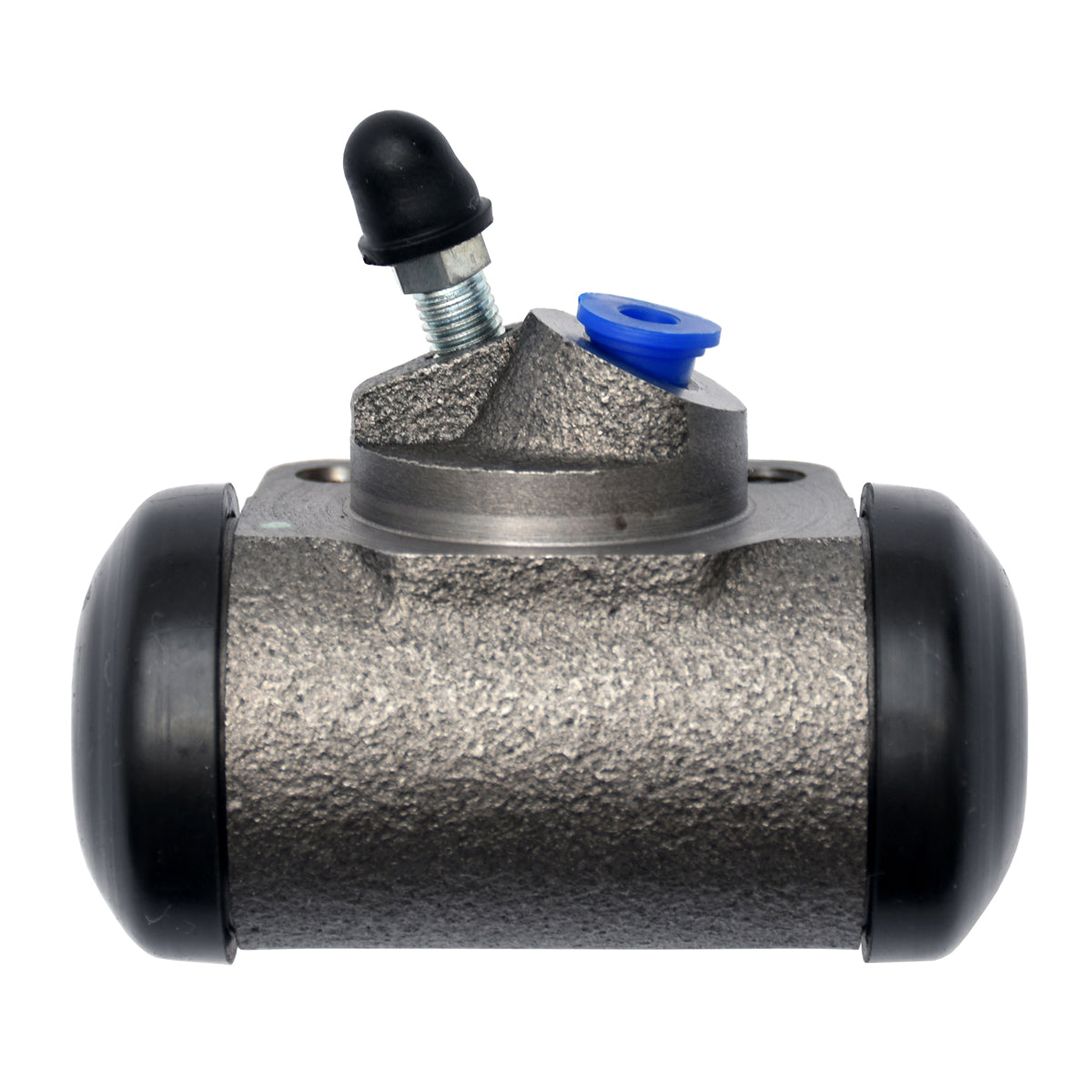

Brake wheel cylinder which fits the Right Hand front of the vehicle.
Please note: This brake cylinder bolts to the Right hand front brake backing plate, fit the brake hose, washer to the cylinder and screw the metal pipe to the hose once the cylinder has been bolted to the backing plate, fit the brake to lock (U shaped clip) to the end of the hose to the metal bracket on the sub frame and bleed the brakes once the brakes are completed.
Note: This cylinder fits all HD, HR models and EJ, EH Utes and Panel Vans fitted with 2 ¼” (Approx 57 mm) brakes.
Hint: Check that the hose misses the wheel on full lock, adjust hose clearance if necessary.
Holden EJ, EH, HD and HR
Standard, Special, Premier
Sedan Wagon, Utility (Ute), Panel Van
Fitted with 6 cylinder Grey motor, Red motor, 149, 161, 179, 186, engine.
